MagnaHoist® Products

MagnaHoist®:  Switchable, permanent magnets with lifting ranges from 220 lbs on as little as 1/4? thick material up to 2200 lbs on as little as 3/8? thick material, the latter unit weighing in at under 40 lbs.

Product Documentation & Pricing
(PDF files open in new tab or window)

MXL-2200 lbs Lifting Magnet

Item MSRP
MXL-2200 lbs Lifting Magnet w/Swivel Hook $2639.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
2639.000
Click image to enlarge.

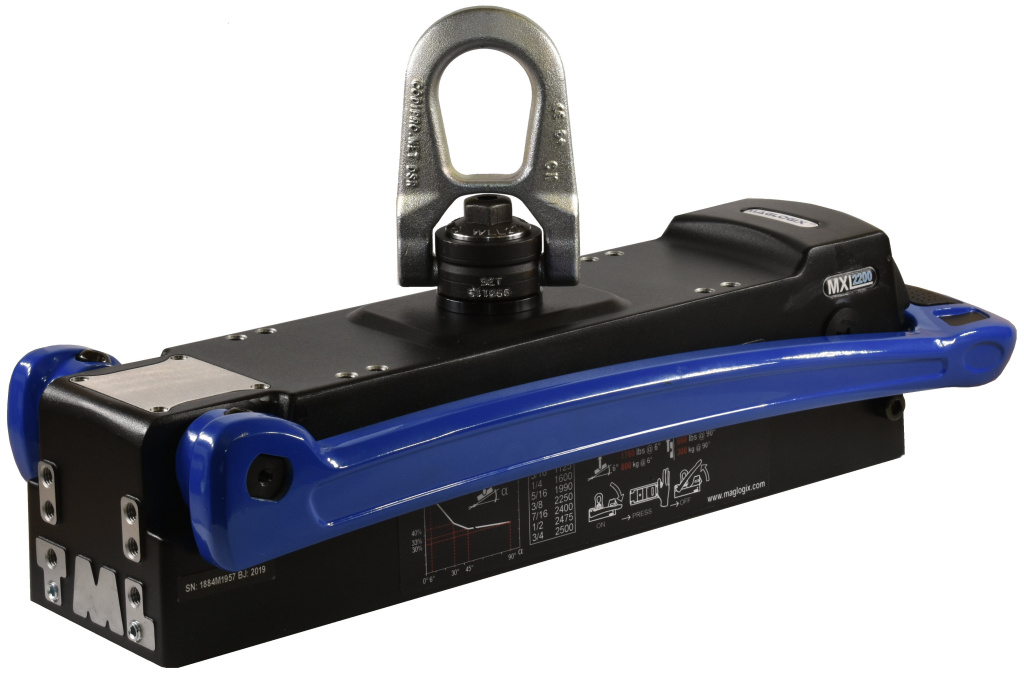

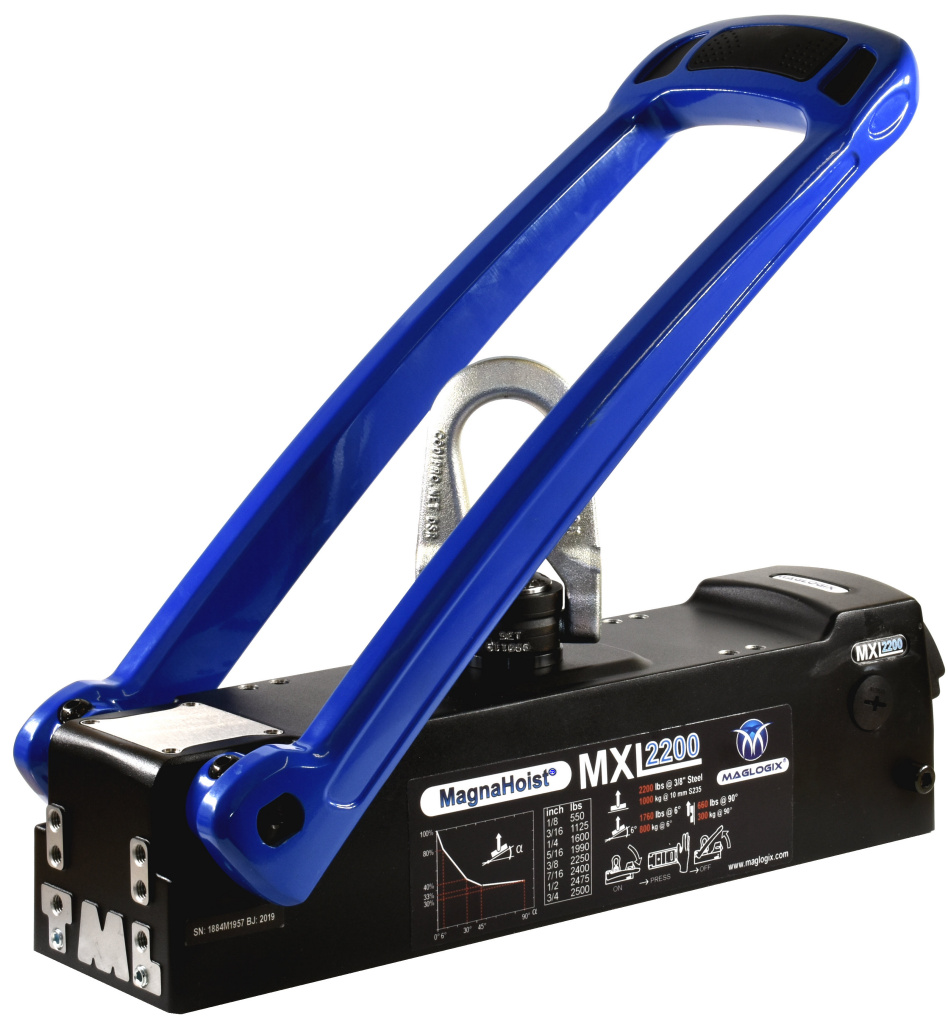

Model MXL-2200
Item # 411000.L
Length (Including handles) 18-1/2″
Width (Including handles) 7-11/16″
Height (Handle in OFF pos.) 13-3/16″
ASME Safety Factor 3:1
SWL on 1/2″ Up to 2200 lbs
SWL on 1/4″ Up to 1630 lbs
Min. Material Thickness 1/8″
Weight 39.4 lbs.
Manual
Dimensions
CAD

MXL-1000 lbs Lifting Magnets

Item MSRP
MXL-1000 lbs Lifting Magnet for Flat w/Swivel Hook $1265.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
1265.000
MXL-1000.R lbs Lifting Magnet for Flat and Pipe w/Swivel Hook $1355.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
1355.000
Click image to enlarge.

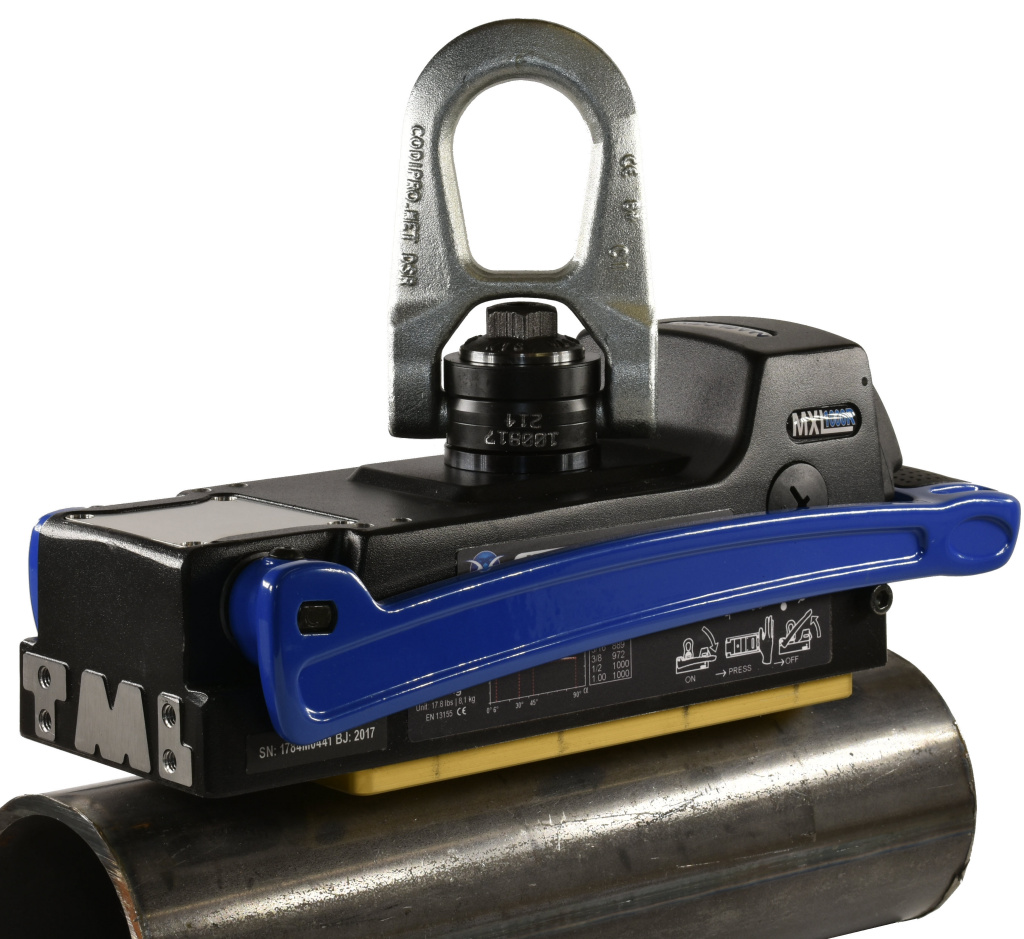

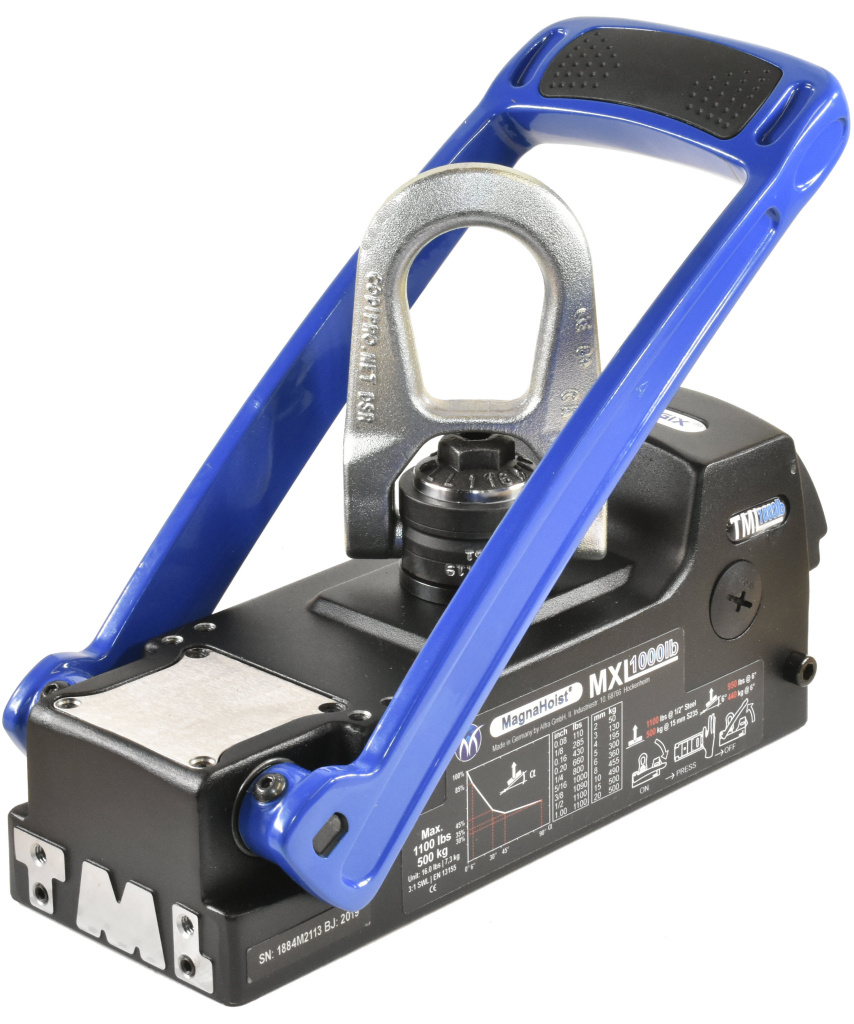

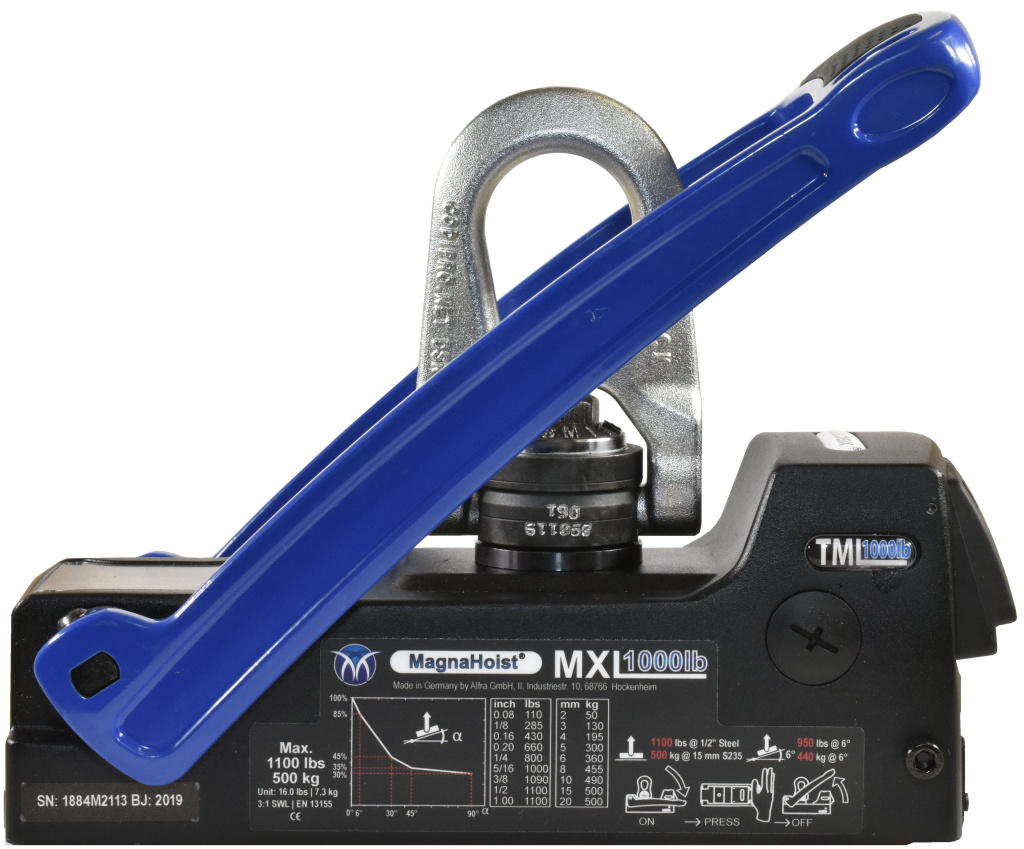

Model MXL-1000 MXL-1000.R
Item # 41500.L (flat) 41500.L.R (pipe and flat)
Length (Including handles) 11.61″ 11.61″
Width (Including handles) 4.65″ 4.65″
Height (Handle in OFF pos.) 8.5″ 8.54″
ASME Safety Factor 3:1 3:1
SWL on 3/8″ Up to 1100 lbs SWL Up to 1100 lbs SWL on flat
SWL on 1/4″ Up to 900 lbs SWL Up to 900 lbs SWL
Min. Material Thickness .080″ .080″
Weight 16.4 lbs. 18 lbs.
Manual
Dimensions
CAD

MXL-500 lbs Lifting Magnet

Item MSRP
MXL-500 lbs Lifting Magnet w/Swivel Hook $769.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
769.000
Click image to enlarge.

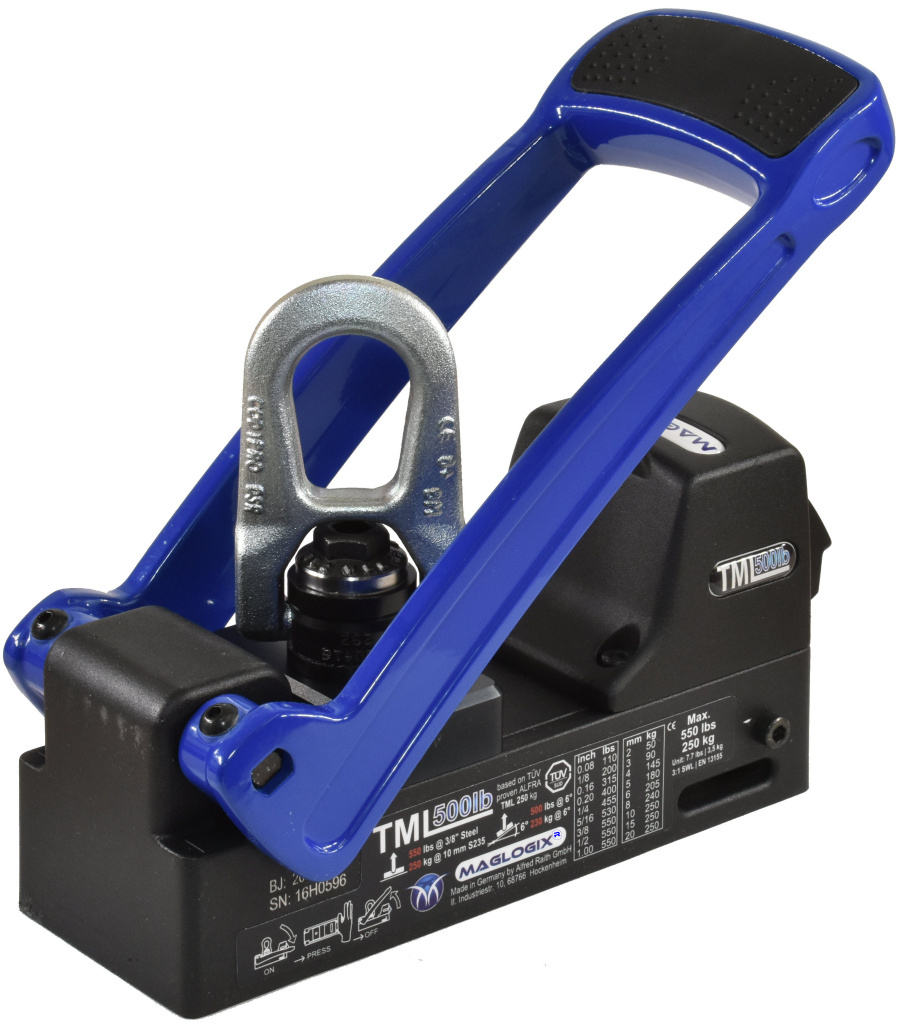

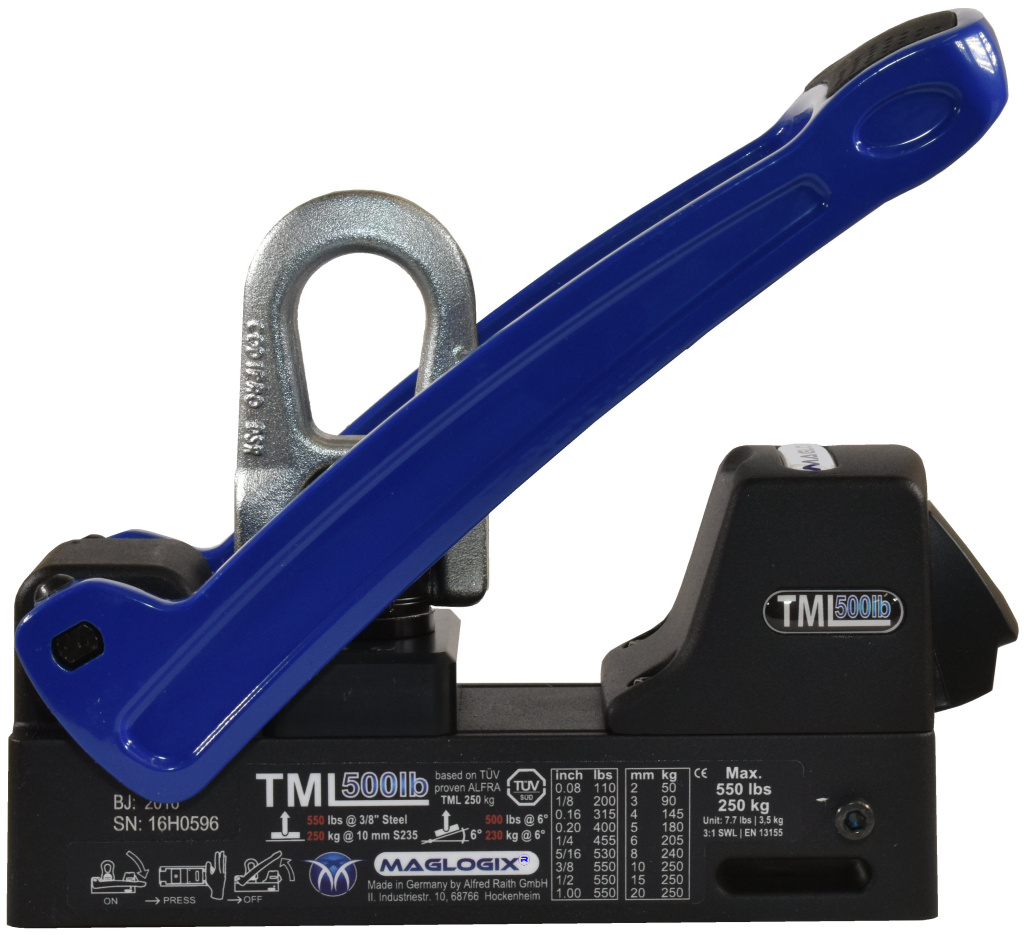

Model MXL-500
Item # 41250.L
Length (Including handles) 9.45″
Width (Including handles) 3.58″
Height (Handle in OFF pos.) 7.52″
ASME Safety Factor 3:1
SWL on 3/8″ Up to 550 lbs SWL
SWL on 1/4″ Up to 450 lbs SWL
Min. Material Thickness .080″
Weight 8 lbs.
Manual
Dimensions
CAD

MXL-440 lbs Lifting Magnets

Item MSRP
MXL-440 lbs Lifting Magnet for Flat w/Swivel Hook $745.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
745.000
MXL-440.R lbs Lifting Magnet for Pipe and Flat w/Swivel Hook $779.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
779.000
Click image to enlarge.

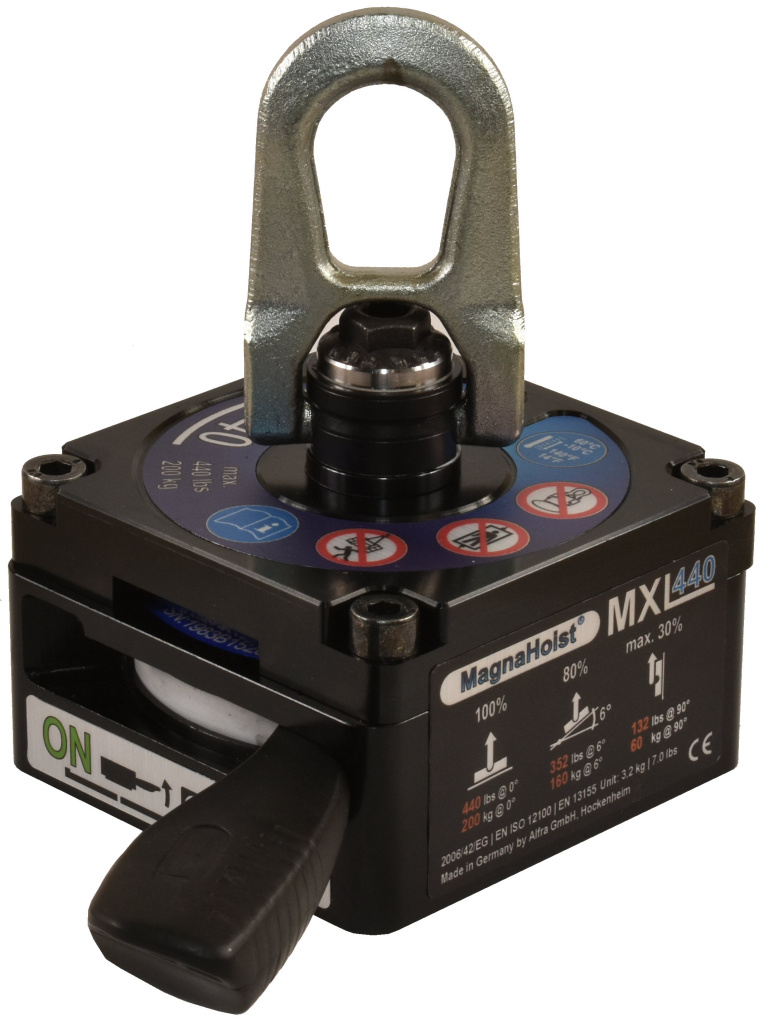

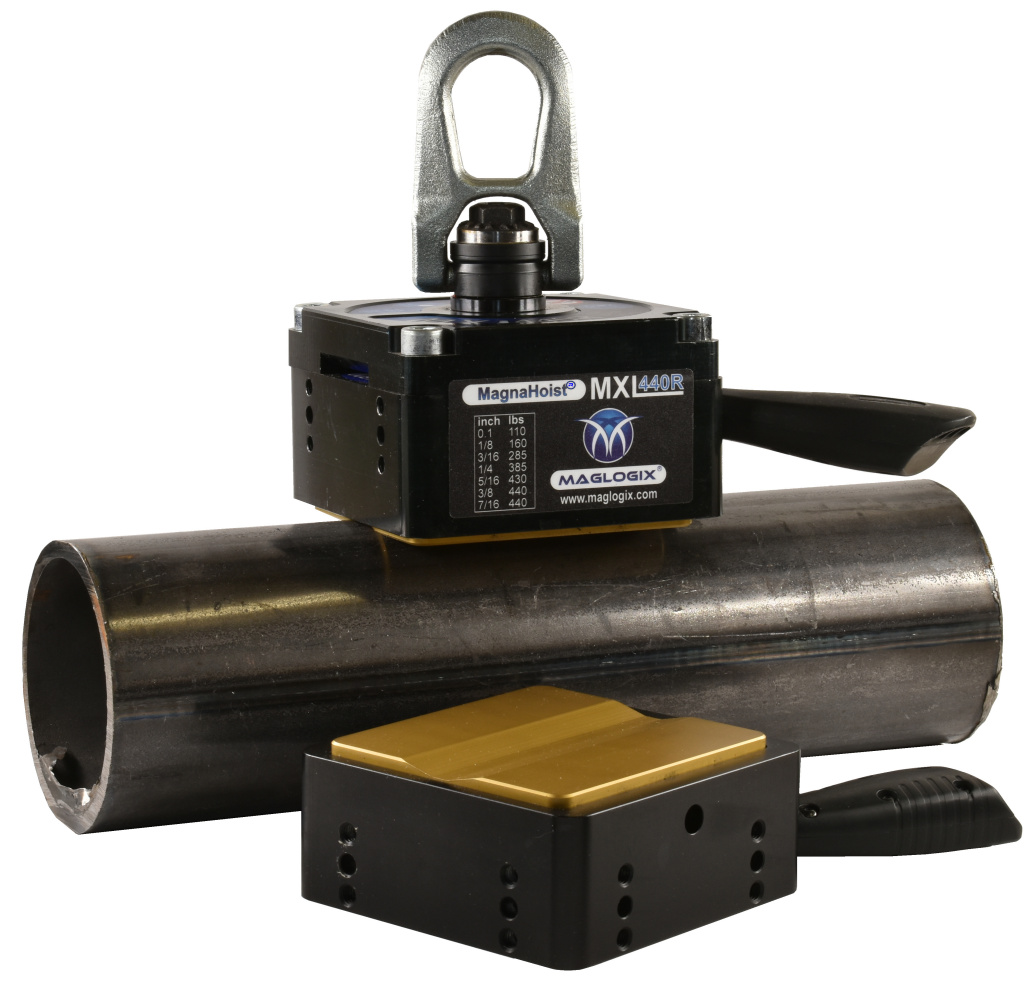

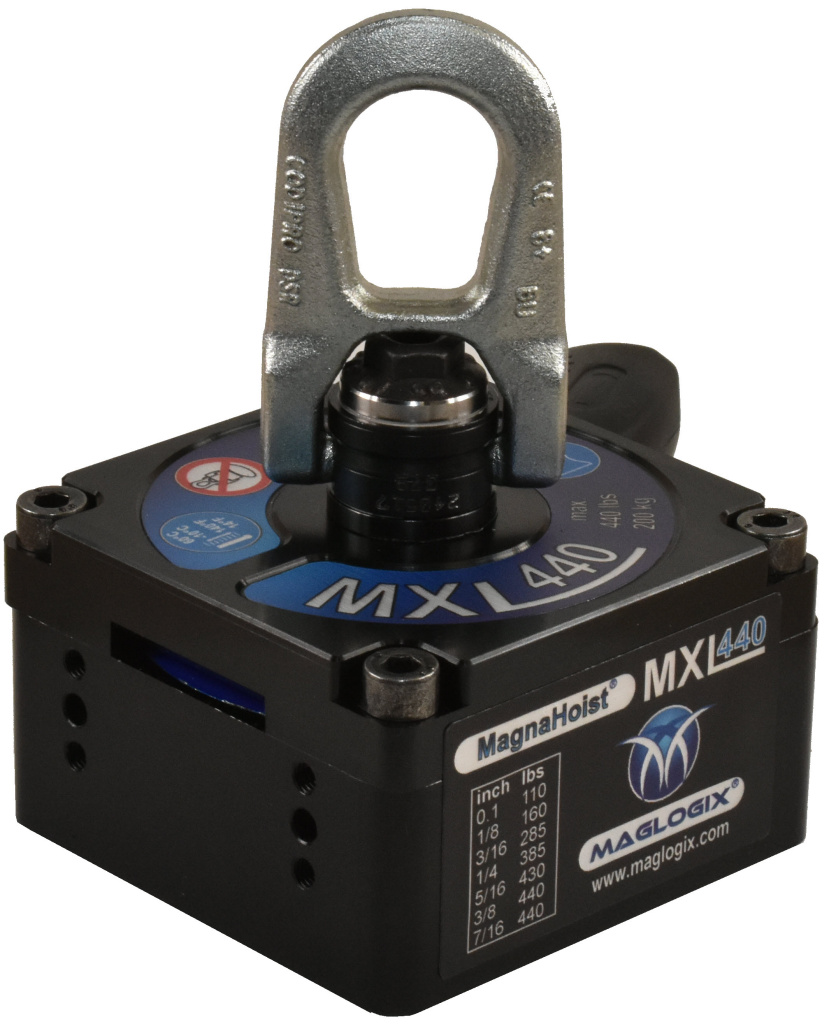

Model MXL-440 MXL-440.R
Item # 41200.L (flat) 41200.L.R (pipe and flat)
Length (Including handles) 4.23″ (8.016″ with handle arc) 4.23″ (8.016″ with handle arc)
Width (Including handles) 4.13″ (6.76″ with handle arc) 4.13″ (6.76″ with handle arc)
Height 6.25″ 6.375″
Holding Force on 3/8″ Up to 440 lbs SWL Up to 440 lbs SWL on flat
Holding Force on 1/4″ Up to 355 lbs SWL Up to 355 lbs SWL
Min. Material Thickness .080″ .080″
Weight 7.75 lbs. 8.5 lbs.
Manual
Dimensions
CAD

MXL-220 lbs Lifting Magnets

Item MSRP
MXL-220 lbs Lifting Magnet for Flat w/swivel hook $415.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
415.000
MXL-220.R lbs Lifting Magnet for Pipe and Flat w/swivel hook $445.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
445.000
Click image to enlarge.

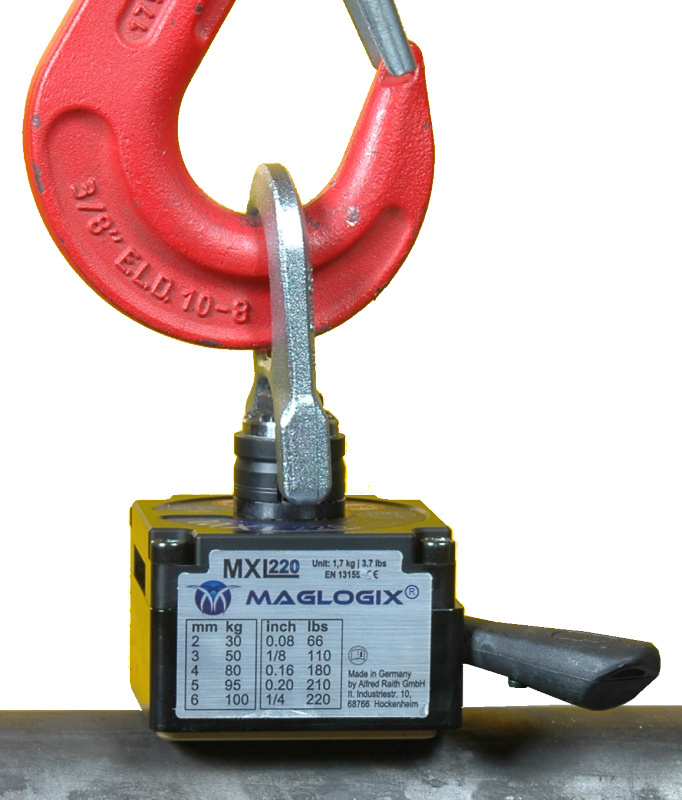

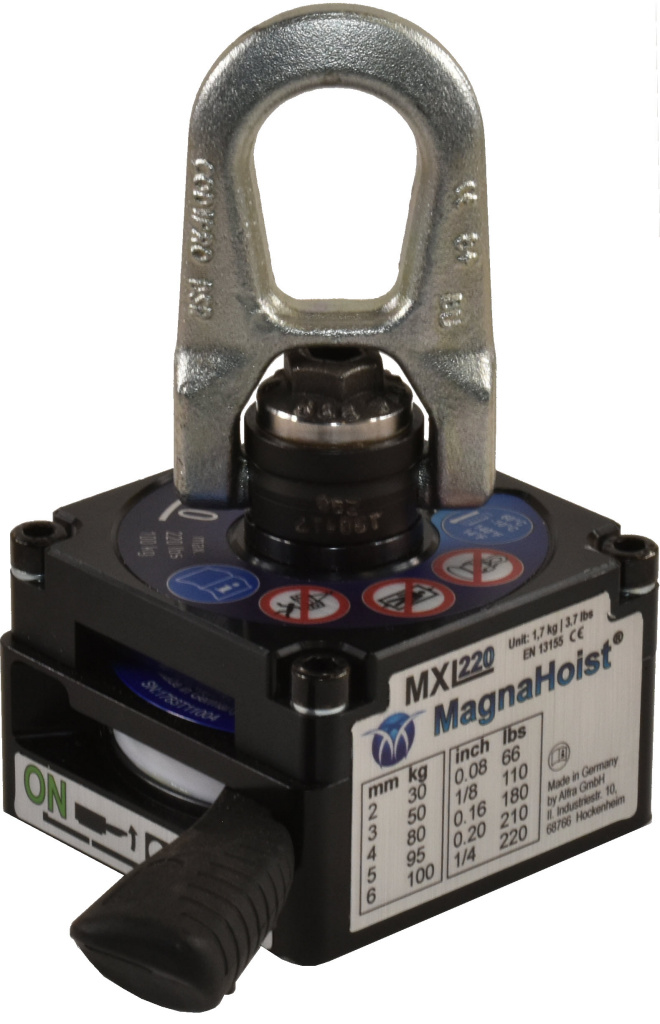

Model MX-220 MX-220.R
Item # 41100.L (flat) 41100.L.R (pipe and flat)
Length (Including handles) 5.74″ 5.74″
Width (Including handles) 4.88″ 4.88″
Height 5.78″ 5.78″
Housing Length 3.25″ 3.25″
Housing Width 3.15″ 3.15″
Holding Force on 3/8″ Up to 220 lbs SWL Up to 220 lbs SWL on flat
Holding Force on 1/4″ Up to 220 lbs SWL Up to 220 lbs SWL on flat
Min. Material Thickness .080″ .080″
Weight 3.7 lbs. 3.9 lbs.
Manual
Dimensions
CAD

Maglogix® Manhole Lifting System

Our lifting system helps eliminate common employee injuries such as shoulder and back injuries, and torn rotator cuffs. If a casting is free and able to be lifted, the Maglogix® Manhole Lifting System makes removal and replacement faster, safer, and easier. You’ll work with more efficiency and less effort due to the easy on/off of the magnet and rapid attachment to the dolly.

Item MSRP
Maglogix® Manhole Dolly $795.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
795.000
Dual Magnet Spreader Bar $400.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
400.000
