MagnaJig® Products

As a magnetic machine tool for clamping, fixturing, or moving an object, MagnaJig® allows you to quickly and easily attach and rearrange guides to your steel wood working table.

Product Documentation & Pricing
(PDF files open in new tab or window)

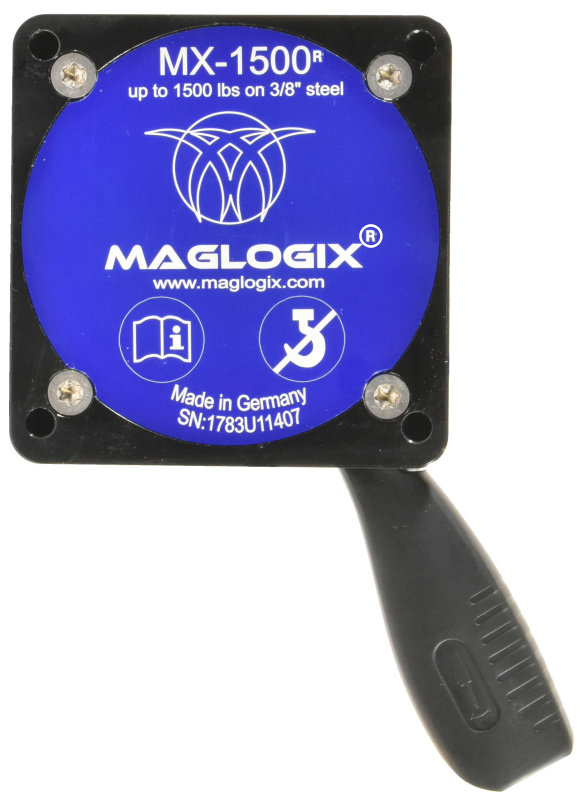

MagnaJig® 1500 Lbs. Base Magnets

Item MSRP
MX-1500 Base Magnet for Flat $629.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
629.000
MX-1500.R Base Magnet for Pipe and Flat $665.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
665.000
Click image to enlarge.
Model MX-1500 MX-1500.R
Item # 41200.US (flat) 41200.R.US (pipe and flat)
Length (Including handles) 4.23″ (8.016″ with handle arc) 4.23″ (8.016″ with handle arc)
Width (Including handles) 4.13″ (6.76″ with handle arc) 4.13″ (6.76″ with handle arc)
Height 1.713″ 1.831″
Holding Force on 3/8″ Up to 1500 lbs Up to 1500 lbs on flat
Holding Force on 1/4″ Up to 1065 lbs Up to 1065 lbs on flat
Min. Material Thickness .080″ .080″
Weight 5.3 lbs. 6 lbs.
Manual
Dimensions
CAD

MagnaJig® 750 Lbs. Base Magnets

Item MSRP
MX-750 Base Magnet for Flat $315.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
315.000
MX-750.R Base Magnet for Pipe and Flat $339.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
339.000
Click image to enlarge.
Model MX-750 MX-750.R
Item # 41100.US (flat) 41100.R.US (pipe and flat)
Length (Including handles) 5.74″ 5.74″
Width (Including handles) 4.88″ 4.88″
Height 1.28″ 1.4″
Housing Length 3.25″ 3.25″
Housing Width 3.15″ 3.15″
Holding Force on 3/8″ Up to 750 lbs Up to 750 lbs on flat
Holding Force on 1/4″ Up to 750 lbs Up to 750 lbs on flat
Min. Material Thickness 1/32″ 1/32″
Weight 2.4 lbs. 2.6 lbs.
Manual
Dimensions
CAD

MagnaJig® Aluminum Base Magnets

Item MSRP
MX-500.AL Base Magnet Aluminum for Flat $175.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
175.000
MX-150.AL Base Magnet Aluminum for Flat $69.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
69.000
Click image to enlarge.
Model MX-500.AL MX-150.AL
Item # 41225.AL 41070.AL
Length (Including handles) 5.09 2.766″
Width (Including handles) 3.12 2.00″
Height 1.65 1.00″
Holding Force on 1/8″ and up 500 lbs. on 3/8″ 150 lbs.
Min. Material Thickness 1/32″ 1/32″
Weight 2.25 lbs. 9.7 oz
Manual
Dimensions
CAD

MagnaJig® 150 Lbs. Base Magnets

Item MSRP
MX-150.TH  Base Magnet Threaded $79.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
79.000
MX-150.JS  Base Magnet Jack Screw $129.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
129.000
Click image to enlarge.
Model MX-150.TH MX-150.JS
Item # 41070.TH 41070.JS
Diameter of Base Magnet 2″ 2″
Diameter w/accy’s 3″ 3″
Height 2.27″ 3.125-4.75″
Thread 2″ 12tpi 2″ 12tpi
Holding Force on 1/8″ and up 150 lbs. 150 lbs.
Min. Material Thickness 1/32″ 1/32″
Weight 14.4 oz 1 lb 12 oz
Manual
Dimensions
CAD
