MagnaDrill® Products

Light weight, no power necessary. Quickly, conveniently, and securely attach any power drill to ferrous metal surfaces. MagnaDrill® allows for easier, faster, more accurate drilling while helping to prevent user fatigue and injuries.

Product Documentation & Pricing
(PDF files open in new tab or window)

Item MSRP
MagnaDrill® MXD-2.0 $1919.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
1919.000
Click image to enlarge.

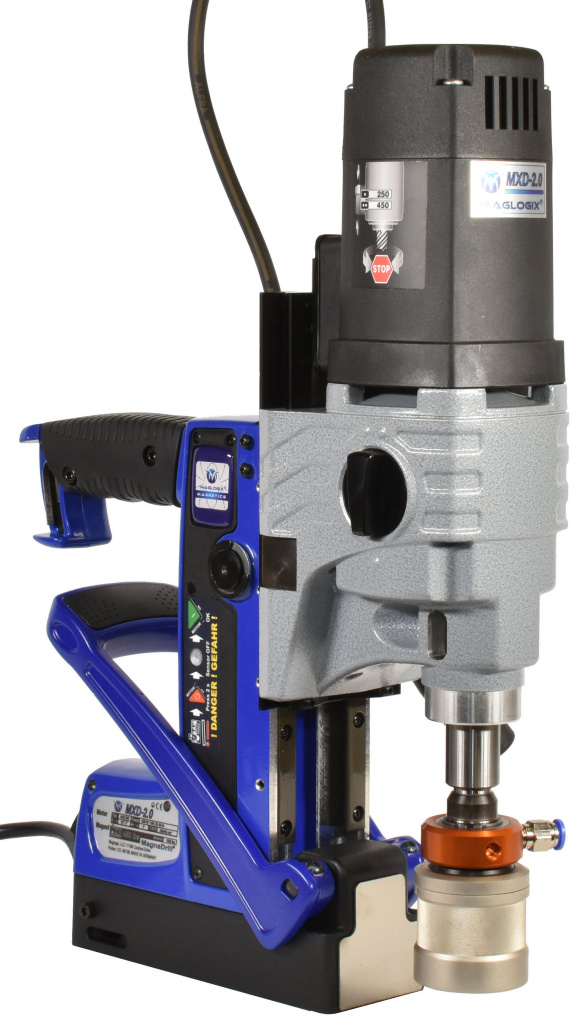

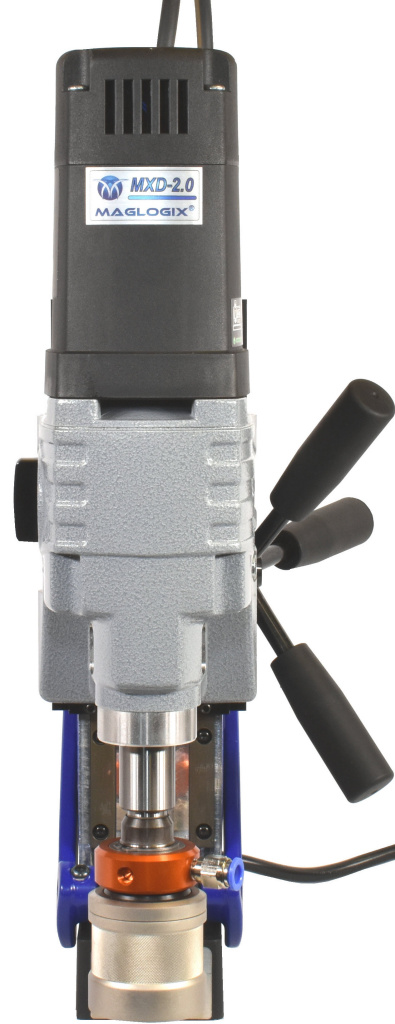

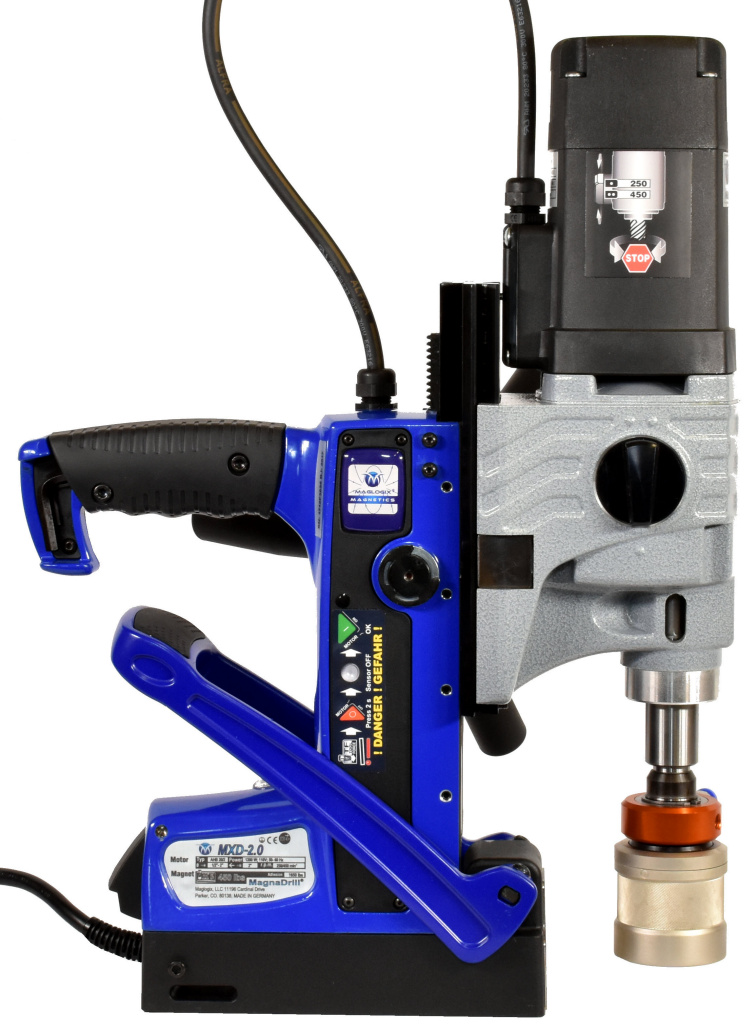

Model MXD2.0
Item # MXD2.0
Input 1200 Watt
Speed (RPM) 250/450 2-speed gearbox
Max Diameter 2″ – 50mm
Max DOC 2″ (50mm)
Stroke 3-1/8″ plus 3-1/8″ adj.
Max Twist Drill 5/8″
Arbor MT 2
Tool Force – 3/8″ 510 lbs
Tool Force – 1/4″ 450 lbs
Min. Material Thickness 1/8″
Weight 25 lbs.
Manual
Dimensions
CAD
Item MSRP
MagnaDrill® MXD-1.5 $1563.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
1563.000
Click image to enlarge.

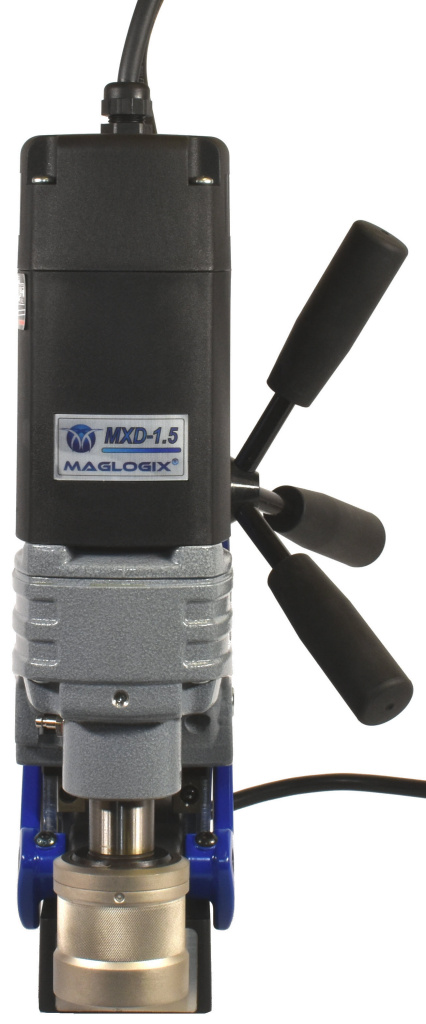

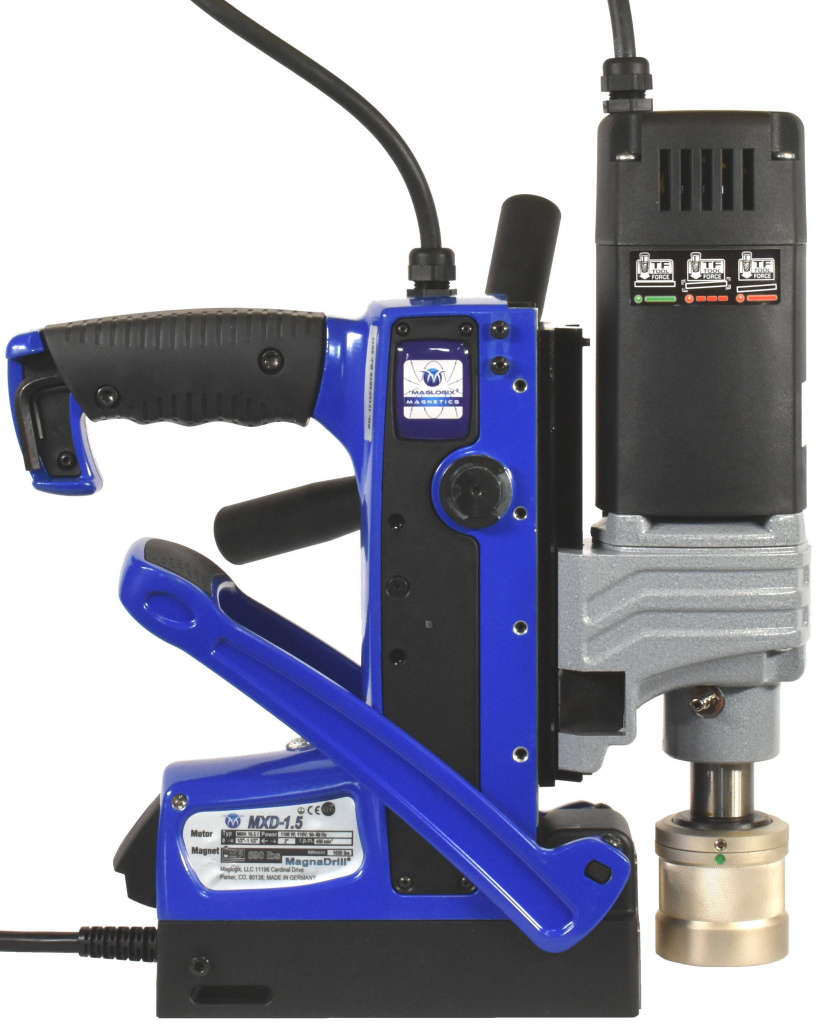

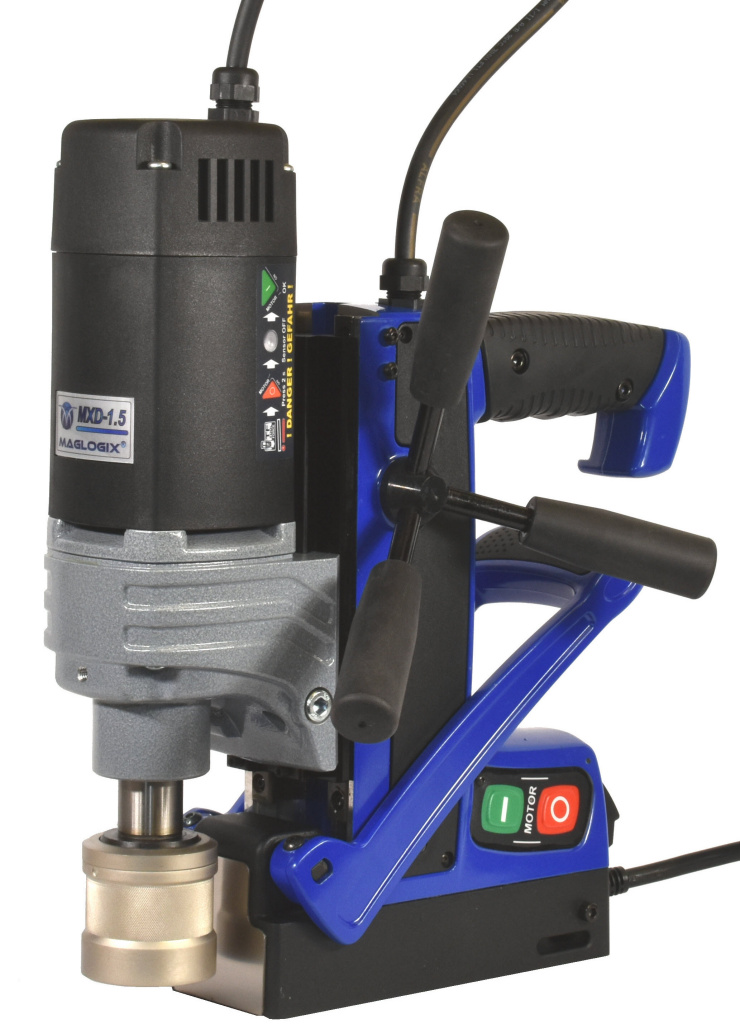

Model MXD-1.5
Item # MXD-1.5
Input 1100 Watt
Speed (RPM) 450
Max Diameter 1-1/2″ – 35mm
Max DOC 2″ (50mm)
Stroke 4″ plus 3″ adjustment
Max Twist Drill 1/2″
Arbor 3/4″ Weldon
Tool Force – 3/8″ 630 lbs
Tool Force – 1/4″ 520 lbs
Min. Material Thickness 1/8″
Weight 22 lbs.
Manual
Dimensions
CAD
Item MSRP
MagnaDrill® MX-V (bare tool) $1149.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
1149.000
Click image to enlarge.

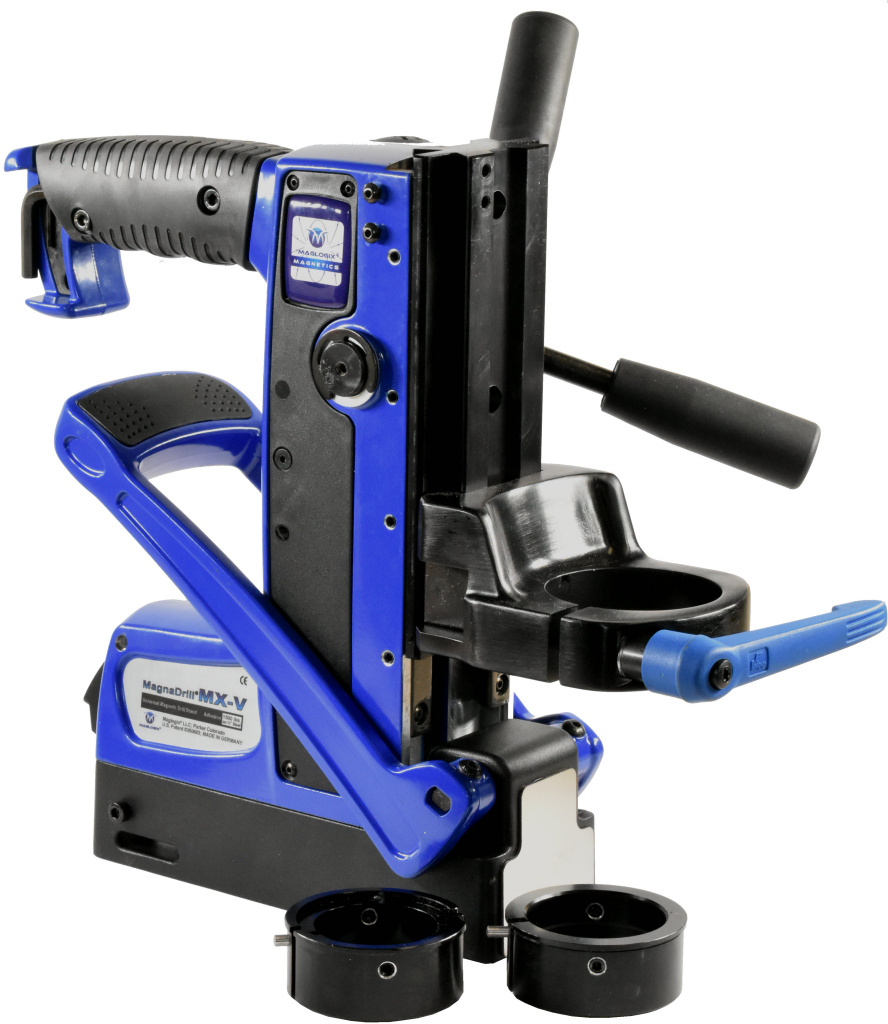

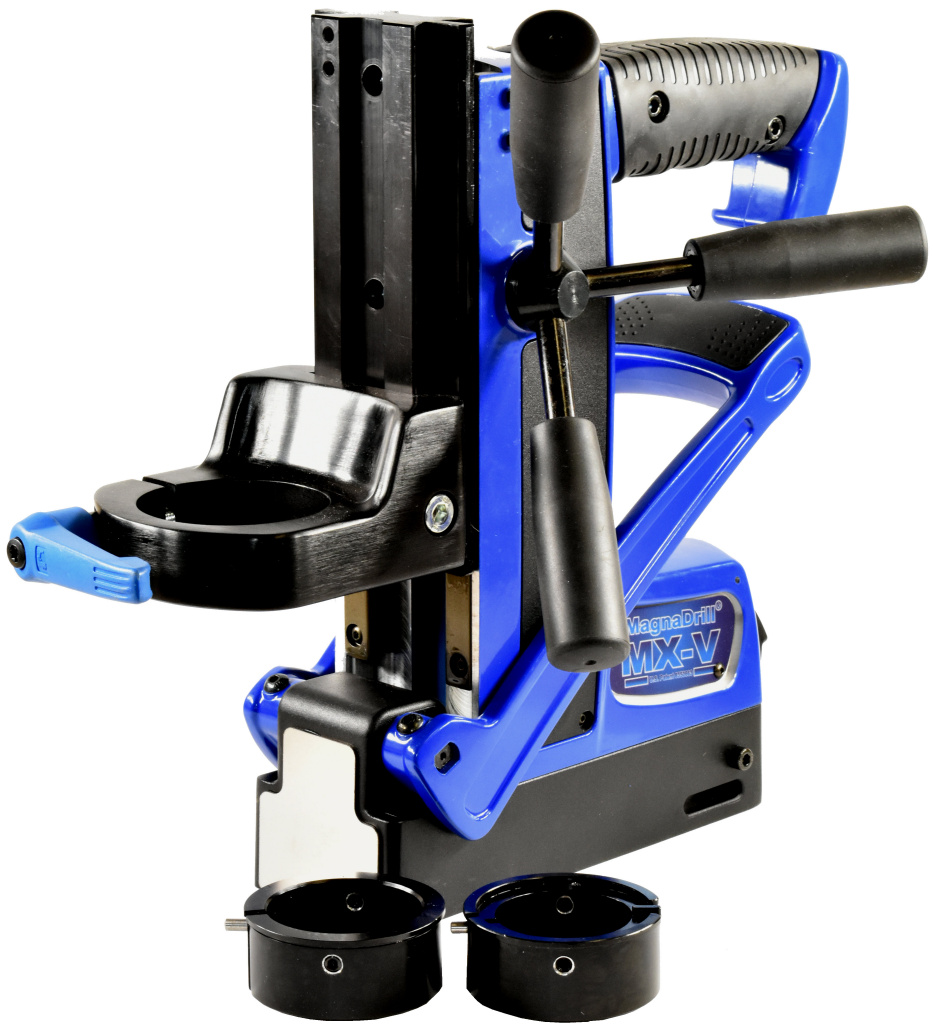

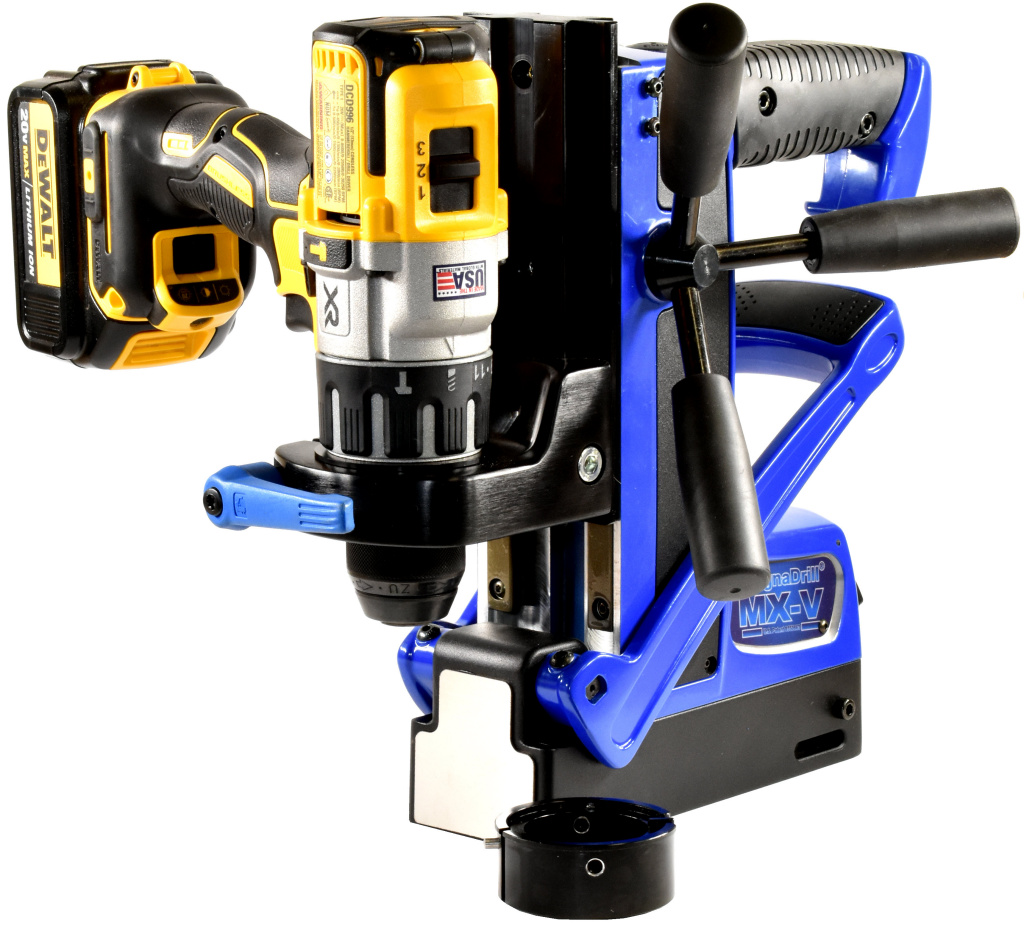

Model MX-V
Item # MX-V
Input
Speed (RPM) Depends on customer’s drill
Max Diameter Depends on customer’s drill
Max DOC 11″ Drill bit
Stroke 4-1/8″
Tool Force – 3/8″ 630 lbs
Tool Force – 1/4″ 520 lbs
Min. Material Thickness 1/16″ or less
Weight 15 lbs.
Manual
Dimensions
CAD
Item MSRP
MXD Pipe Adapter w/2 chain vises $459.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
459.000
Click image to enlarge.

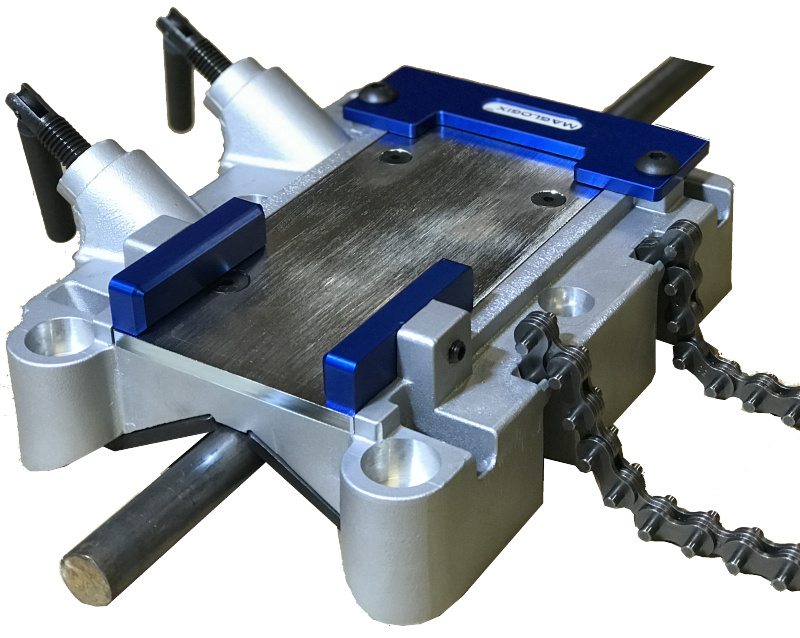

Item # MXD Pipe Adapter
Length 9.84″
Width (including handles) 9.25″
Height 3.9″
Min. Material Diameter .875″ OD
Max Diameter 8″or add adapters and straps for larger diameters
Weight 12.2 lbs.
Manual
Dimensions
CAD
Item MSRP

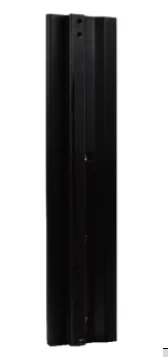

MX-V Extended Guideway $94.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
94.000

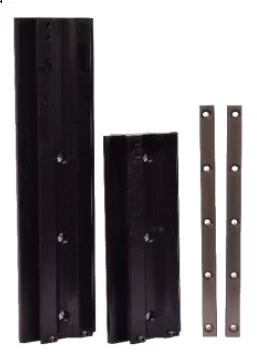

MX-V Extended Guideway Retrofit Kit $127.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
127.000
Click image to enlarge. magnadrill mxv extended guideway bg magnadrill mxv extended guideway retrofit kit bgassy
Item # M14086.XL M14086.XL.KIT
Speed
Max Diameter
Max DOC 12″ drill bit 12″ drill bit
Stroke
Max Tool Force – 3/8″
Max Tool Force – 1/4″
Min. Material Thickness
Weight
Manual
Dimensions
CAD
Item MSRP
MX-V Universal Adapter 1/2″ $164.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
164.000

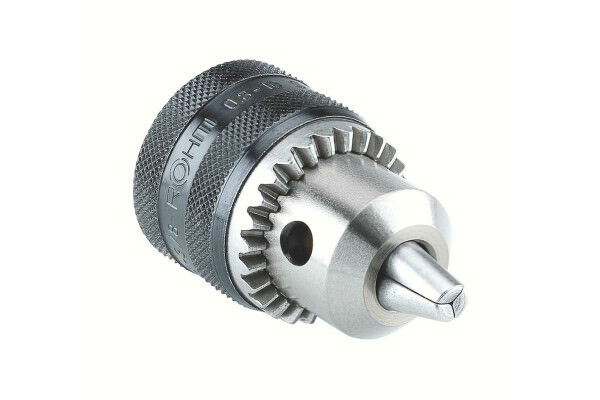

ROHM Chuck Upgrade $55.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
55.000
Three Flat for 1/2″ Shaft $30.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
30.000
Click image to enlarge. magnadrill mxv universal adapter mxvua rohm chuck mxv ua trilobe
Item # MXV.UA.500  ROHM Chuck
Upgrade

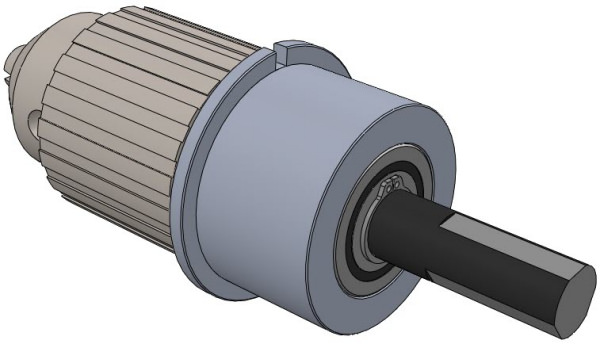

Three Flat for
1/2″ Shaft
(keyed or keyless)
Max Diameter
Max DOC 12″ drill bit
Stroke
Max Tool Force – 3/8″
Max Tool Force – 1/4″
Min. Material Thickness
Weight
Manual
Dimensions
CAD

MagnaDrill® Accessories

1″ Length
hss annular cutter one inch
Item # MSRP
7/16″ 1914011025 $19.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
19.000
1/2″ 1914013025 $20.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
20.000
9/16″ 1914015025 $21.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
21.000
5/8″ 1914016025 $21.50
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
21.500
11/16″ 1914018025 $22.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
22.000
3/4″ 1914019025 $23.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
23.000
13/16″ 1914021025 $25.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
25.000
7/8″ 1914023025 $29.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
29.000
15/16″ 1914024025 $30.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
30.000
1″ 1914026025 $31.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
31.000
1-1/16″ 1914027025 $32.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
32.000
2″ Length
hss annular cutter two inch
Item # MSRP
1/2″ 1914013050 $25.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
25.000
9/16″ 1914015050 $26.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
26.000
5/8″ 1914016050 $28.50
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
28.500
11/16″ 1914018050 $31.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
31.000
3/4″ 1914019050 $32.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
32.000
13/16″ 1914021050 $35.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
35.000
7/8″ 1914023050 $44.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
44.000
15/16″ 1914024050 $45.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
45.000
1″ 1914026050 $47.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
47.000
1-1/16″ 1914027050 $48.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
48.000
HSS Annular Cutter Ejector Pins
hss annular cutters ejector pins one and two inch
Item # Description MSRP
1926500 Ejector Pin for 1″ Cutters (1/4″ x 3″) $4.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
4.000
1950500 Ejector Pin for 2″ Cutters (1/4″ x 4″) $4.55
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
4.550
1926501 Ejector Pin for 7/16″ x 1″ Cutter (1/4″ x 3″) $4.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
4.000
1926502 Ejector Pin for 7/16″ x 2″ Cutter (1/4″ x 3-15/16″) $5.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
5.000
HSS Annular Cutter Sets
Item #  Description MSRP

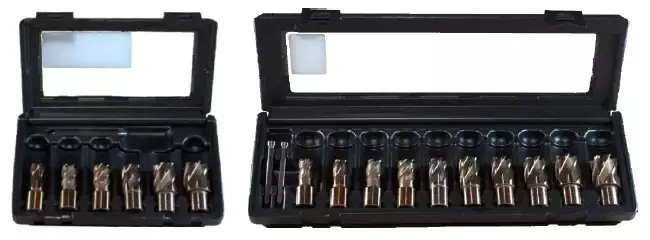

1″ Length hss annular cutters one inch length six and ten piece sets
1926500 6-piece Set w/1 ejector pin $125.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
125.000
1950500 10-piece Set w/2 ejector pins $225.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
225.000

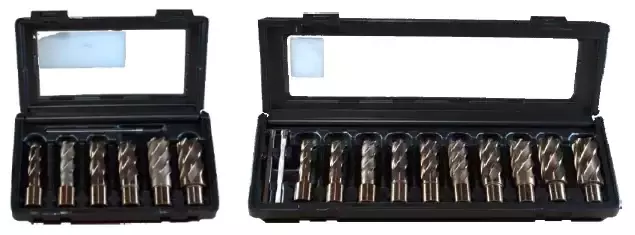

2″ Length hss annular cutters two inch length six and ten piece sets
1926501 6-piece Set w/1 ejector pin $199.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
199.000
1926502 10-piece Set w/2 ejector pins $325.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
325.000

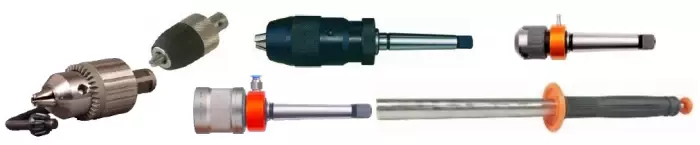

magnadrill other accessories

Item # Description MSRP
18107 Drill Chuck with Weldon Shank for twist drills 1/16″-1/2″ (1 – 13mm) $44.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
44.000
18107.Keyed Drill Chuck with Weldon Shank for twist drills 1/16″-1/2″ (1 – 13mm) Jacobs Ball Bearing Keyed Chuck $44.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
44.000
18008 Drill Chuck with MT2 for twist drills 1/16″ – 5/8″ (1 – 16mm) $64.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
64.000
18009 Drill Chuck with MT3 for twist drills 1/16″ – 5/8″ (1 – 16mm) $64.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
64.000
18003 Tool Holder MT2 for Annular Cutters with Weldon shank $152.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
64.000
18003L Tool Holder MT2 (extended version for up to 4″ DOC) Weldon Shank $219.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
219.000
18650 Quick Change Tool Holder with MT2 max 1-37/64″ (40mm) dia. Annular Cutters $219.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
219.000
189414180 Extra Tool Holder for MX-V. With 43mm and DeWalt Collar included $100.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
100.000
MXD-Pstrap Strap adapters and ratcheting tie down for Pipe Adapter-for larger diameters $60.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
60.000
18654 Swarf Remover Magnet $46.00
Maximum quantity exceeded
Minimum purchase amount of 0 is required
Maximum purchase amount of 0 is allowed
46.000
